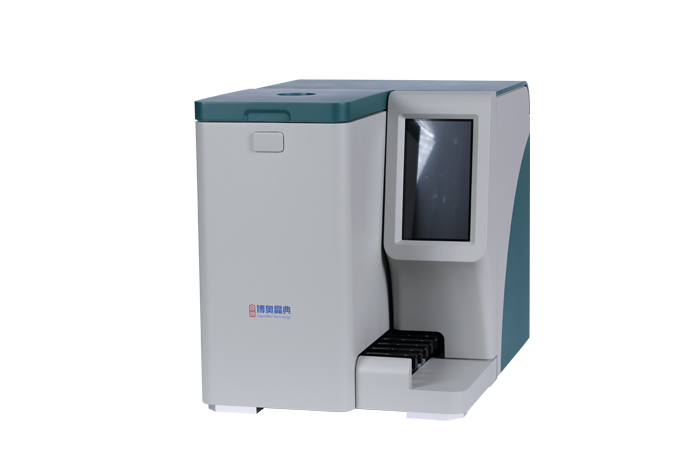

CapitalBiotech Centrifugal Heat Sealing Machine

The centrifugal heat sealing machine integrates chip centrifugation and chip heat sealing functions, which can operate simultaneously without interfering with each other.

The shell, heat sealing module, centrifugal module, control unit, and touch screen comprise the centrifugal heat sealing machine. It is suitable for centrifugal injection and heat sealing following SNP chip injection, allowing the SNP chip to form an independent reaction chamber. This prevents inter-sample interference.


biotech companies genetic sequencing

Features of Centrifugal Heat Sealing Machine

  • The heat-sealing process can be performed on four chips simultaneously.

  • A sizable screen with easily adjustable settings.

  • Digital PID thermostats provide precise temperature regulation.

  • A fully enclosed, dependable operation.

  • Cross-contamination is prevented by the isolation of reaction chambers from one another.

Specification of Centrifugal Heat Sealing Machine

Chip size(75±0.50)mm×(25±0.25)mm×(2.00±0.10)mm
Processing throughput250 chips/hour
Temperature range150~180 ℃
Temperature precision±1℃
Blocking time1~99s
Capacity2,4 microfluidic chips
Working speed8000rpm
single centrifugation time1 min
Dimension (L×W×H)470mm×345mm×400mm
Weight45kg
