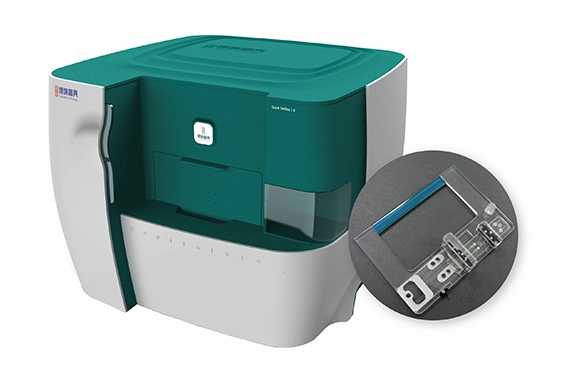

Fully Integrated Automatic On-site Quick DNA Test System Quick TargSeq A

Name: Fully Integrated Automatic On-site Quick DNA Test System Quick TargSeq A
Brand: CapitalBiotech Co., Ltd.

A rapid, on-site, fully automated DNA testing system with independent intellectual property rights. Using microfluidic technology, the system combines the processes of nucleic acid extraction, amplification, and detection. All inspections are performed mechanically. Data is processed using the bulit in DNA typing software, and the entire process—from sample extraction to DNA typing results—takes less than two hours. the entire operation. This forensic platform is designed for rapid DNA analysis. Adopting microfluidic technology, it can conduct the hands-free development CODIS Core STR profiles or other STR profiles from reference samples.

Inquire Now

Features of Quick TargSeq™ Fully Integrated Automatic On-site DNA Quick Test System

1. Simple and fast

1 min of manual labor for a full two-hour detection
Minimal technical expertise required, with no rely on skilled operators
Full automation and portability enable PCR-based partitioned testing to be performed on-site, eliminating the need for a dedicated laboratory.

2. High sensitivity

LoD ≥ 0.4 ng
Equipped with its proprietary Rtyper21 and AIDIP38 reagents, and compatible with Promega PowerPlex21 reagent, it provides results cinsistent with those from conventional laboratory settings.

3. Maximum safety

Fully sealed, integrated circuitry eliminates contamination risks
Both the device and its outputs are reliable and consistent

4. Personalization

With an open reagent configuration, the test material’s specifications can be used to tailor the cartridges and reagents used
Cartridges and software can both be updated in the future

Specification of Quick TargSeq™ Fully Integrated Automatic On-site DNA Quick Test System

Specimen Channel	2 channel specimens + 1 channel contract (contract type can be selected independently)
Specimen Type	Oral swabs, whole blood, blood card, cast-off cells, etc.
lntegrated Process	Specimen pre-treatment + multiple PCR amplification + capillary electrophoresis test fully integrated automatic device
Supporting Reagent	RTyper21, AIDIP38, Promega PP21, etc.
Electrophoretic Resolution	Single-base
Operation Time	≤2.5 hours
Output Document Format	TXT, FSA
Size	525260 cm
Weight	35 kg

Products

Related Forensic Platform

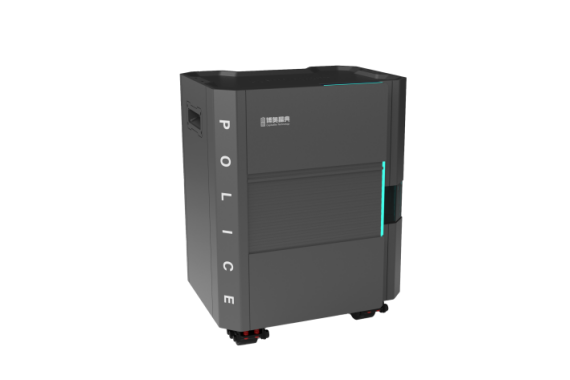

Fully Integrated Automatic On-site Quick DNA Test System Quick TargSeq B
